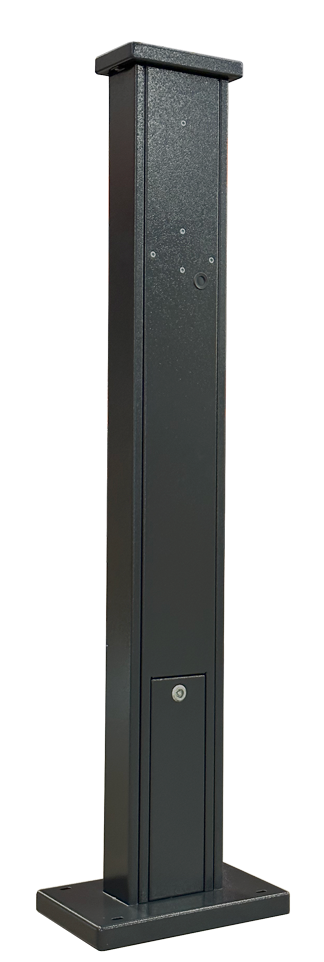

Morek AC Charger Stand

Modified on Thu, 15 Jan at 9:39 AM

You can find the relevant dimensions for the Morek AC Stand attached to the bottom of the article.

Dimensions apply to the following product codes:

MEV001N7021STD (For two AC chargers)
MEV004N7021STD (For one AC charger)
MEV003N7021STD (Ground Frame)

Note that M5 screws needed to attach the Charger(s) are included with the Stand.
M12 screws needed to attach the Stand are included with the Ground Frame.

Renders for the stand and charger can be found here: For Designers - Morek AC 3D Models

Check out the overview of stand's features in the video below:

Attachments (1)

pdf

Morek AC Stand Dimensions.pdf
518 KB
