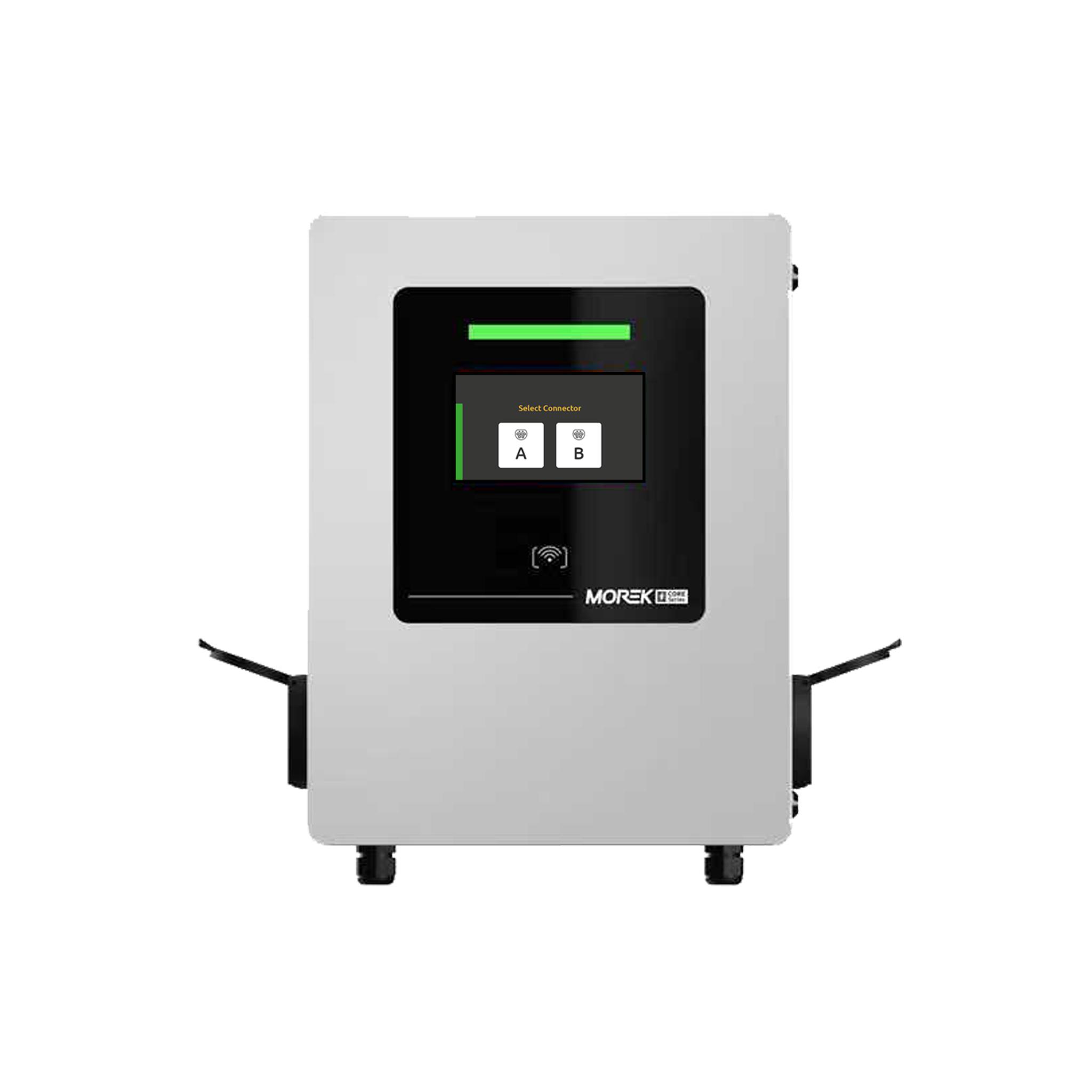

            CORE-series 2x22 kW AC Wall Charger with T2 Sockets

            Modified on Wed, 20 May at 3:41 PM

            Discover the convenience of our small and lightweight electric vehicle (EV) charger. This versatile charger is perfect for use in homes, apartment buildings, or workplaces, offering the ability to charge your vehicle and share charging facilities with others.

            Product ID socket version:

            • MEVC44DREWGNT2N - socket without shutter
            • MEVC44DREWGNT2S - socket with shutter


            • WiFi, LAN, 4G
            • RFID
            • Type 2 Sockets
            • 7" touch screen
            • IK10 protection



            Charging modeLevel 2, Mode 3
            Connector type  2 x Type 2 Socket; sockets with shutter on shutter version
            Charging control  Plug-and-Charge with start/stop touch button, RFID Card, Web app, User APP
            Contactless interoperabilityISO/IEC 14443 A/B (13.56 MHz), incl. MIFARE
            Internet connectionEthernet LAN / Wi-Fi / 4G
            External communicationRS485
            IP protectionIP54
            Impact strengthIK10
            DisplayHMI: 7 in touch screen
            LED indicatorYes
            Communication protocolOCPP1.6 J; OCPP2.0.1 and ISO15118-2 upgradeable
            CertificateCE, CB and UKCA
            MountingWall
            Stand / ground mountOptional
            Cooling methodNatural Cooling
            Power network configurationTN / TT  -> (3P+N+PE )
            Efficiency>99%
            Power meterIntegrated
            AC power Input rating3-phase 400V±20%
            Standby consumption (Wh)<10 W
            Feed-through terminalMorek OTL-2 terminals
            Rated frequency50/60 Hz
            Output current2 x 32 A (adjustable by output power)
            Output power2 x 22 kW (adjustable)
            DLM / DLB functionAvailable, CTs or controller not included
            Storage temperature-40 to 75°C ambient
            Operating temperature-30 to 50°C ambient
            Operating humidityUp to 95% non-condensing
            Altitude≤2000m
            Electrical protectionOVP(Over Voltage Protection), OCP(Over Current Protection), OTP(Over Temperature Protection), UVP(Under Voltage Protection), SPD(Surge Protection Detection), Grounding Protection, SCP(Short Circuit Protection), Control Pilot Fault, Relay Welding Detection, RCD(DC 6mA)
            Dimensions gross, mm600(h) ×406(w) ×250(d)
            Dimensions product, mm530(h) x410(w) x166(d)
            Weight gross, kg 15
            Weight net, kg 12
