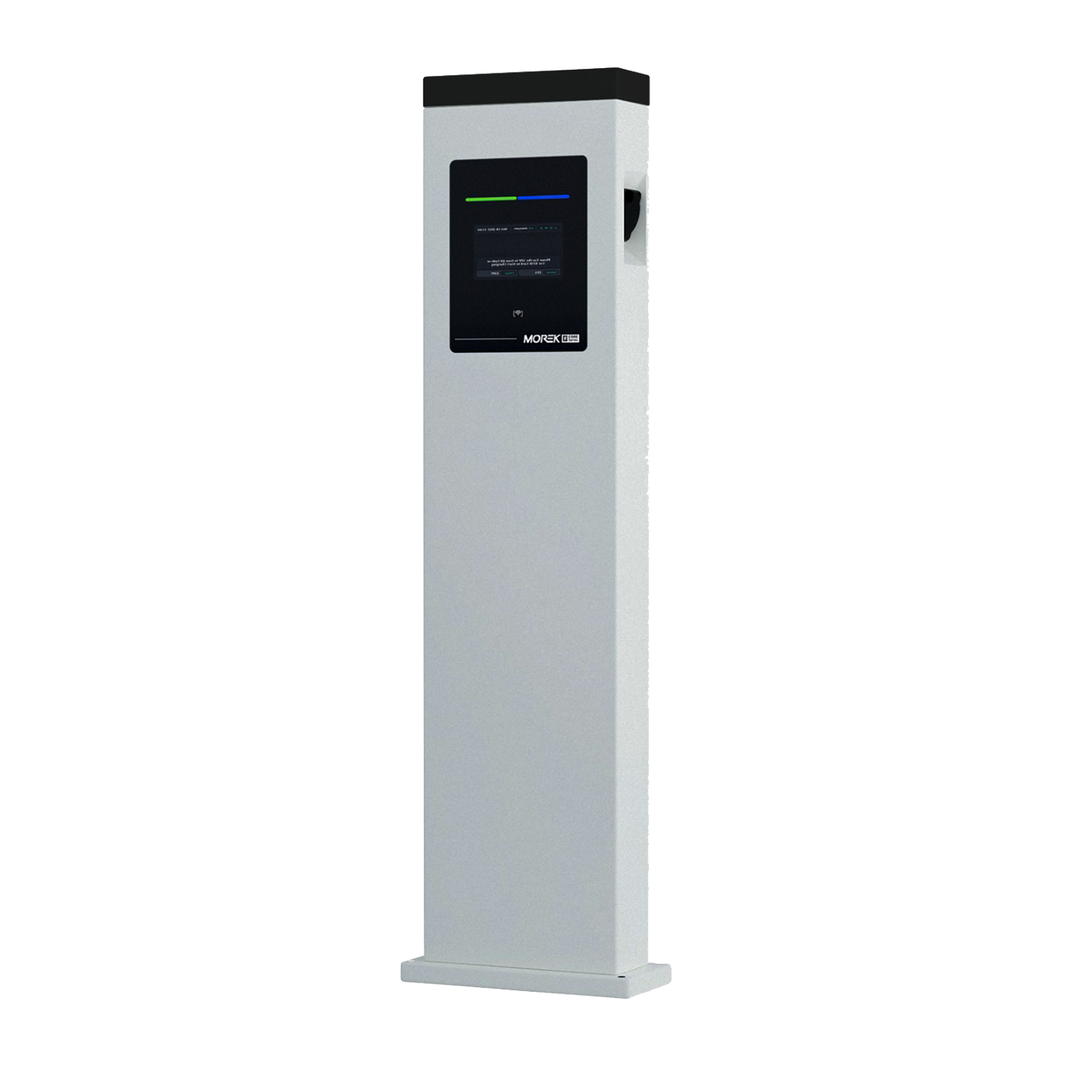

Discover the convenience of our small and lightweight electric vehicle (EV) charger. This versatile charger is perfect for use in homes, apartment buildings, or workplaces, offering the ability to charge your vehicle and share charging facilities with others.
- WiFi, LAN, 4G
- RFID
- Type 2 Sockets
- 7" touch screen
- IK10 protection
Product ID socket version:
- MEVC44DREWGNT2NF - sockets without shutter
- MEVC44DREWGNT2SF - sockets with shutter
| Charging mode | Level 2, Mode 3 |
| Connector type | 2 x Type 2 Socket; sockets with shutter on shutter version |
| Charging control | Plug-and-Charge with start/stop touch button, RFID Card, Web app, User APP |
| Contactless interoperability | ISO/IEC 14443 A/B (13.56 MHz), incl. MIFARE |
| Internet connection | Ethernet LAN / Wi-Fi / 4G |
| External communication | RS485 |
| IP protection | IP54 |
| Impact strength | IK10 |
| Display | HMI: 7 in touch screen |
| LED indicator | Yes |
| Communication protocol | OCPP1.6 J; OCPP2.0.1 and ISO15118-2 upgradeable |
| Certificate | CE, CB and UKCA |
| Mounting | Ground |
| Cooling method | Natural Cooling |
| Power network configuration | TN / TT -> (3P+N+PE ) |
| Efficiency | >99% |
| Power meter | Yes |
| AC power Input rating | 3-phase 400V±20% |
| Standby consumption (Wh) | <10 W |
| Feed-through terminal | Morek OTL-2 terminals |
| Rated frequency | 50/60 Hz |
| Output current | 2 x 32 A (adjustable by output power) |
| Output power | 2 x 22 kW (adjustable) |
| DLM / DLB function | Available, CTs or controller not included |
| Storage temperature | -40 to 75°C ambient |
| Operating temperature | -30 to 50°C ambient |
| Operating humidity | Up to 95% non-condensing |
| Altitude | ≤2000m |
| Electrical protection | OVP(Over Voltage Protection), OCP(Over Current Protection), OTP(Over Temperature Protection), UVP(Under Voltage Protection), SPD(Surge Protection Detection), Grounding Protection, SCP(Short Circuit Protection), Control Pilot Fault, Relay Welding Detection, RCD(DC 6mA) |
| Dimensions gross, mm | 1500(h) x600(w) x400(d) |
| Dimensions product above ground, mm | 1405(h) x450(w) x250(d) |
| Weight gross, kg | 48 |
| Weight net, kg | 40 |
