Statement

Before transporting, storing, installing, operating, using and maintaining the equipment, please read this manual first and follow the instructions strictly.

Please follow all safety precautions marked on the equipment and in the manual.

The "Danger", "Warning" and "Caution" items in the manual do not represent all the safety items that should be observed. You must also comply with relevant international, national or regional standards and industry practices.

The company does not assume any responsibility for any violation of safety operation requirements or violation of safety standards for design, production and use of equipment.

This equipment should be used in an environment that meets the design specifications. Otherwise,

the possible equipment failure, equipment malfunction or component damage is not within the scope of the equipment quality assurance. Otherwise, the company will not be liable for compensation for personal injury, property loss, etc.

All operations including transportation, storage, installation, operation, use and maintenance must comply with applicable laws, regulations, standards and specifications.

The Company shall not be liable for any of the following circumstances or their consequences

• Equipment damage caused by earthquake, flood, volcanic eruption, mudslide, lightning strike, fire, war, armed conflict, typhoon, hurricane, tornado, extreme weather
• Not operated within the conditions of use described in this manual
• The installation and use environment does not comply with relevant international, national or regional standards
• Unqualified personnel perform equipment installation and maintenance;
• Failure to follow the operating instructions and safety warnings in the product and documentation;
• Unauthorized disassembly, modification of the product or modification of the software code;
• Damage caused by transportation by you or a third party you entrust;
• Damage caused by storage conditions not meeting the requirements of product documentation;
• The materials and tools you bring with you do not meet the requirements of local laws,
• regulations and relevant standards;
• Damage caused by your or a third party’s negligence, intent, gross negligence, improper operation or reasons not attributable to our company.

1.1 Personal Safety

    ———————————————————————————————————————

 Danger :

It is strictly forbidden to operate with power on during the installation process. It is forbidden to install or remove cables with power on. The cable core Arcing or sparking can result in fire or personal injury.

    ———————————————————————————————————————

 Danger :

When the equipment is energized, irregular or incorrect operation may cause fire or electric shock, resulting in personal injury or property loss

———————————————————————————————————————

 Danger :

During operation, it is strictly forbidden to wear watches, bracelets, rings, necklaces and other conductive objects to avoid electric shock and burns.

    ———————————————————————————————————————

Danger :

Special insulating tools must be used during the operation to avoid electric shock or short circuit failure. The insulation to withstand voltage level must meet the requirements of local laws, regulations, standards and specifications.

    ———————————————————————————————————————

Warning :

During the operation, special protective equipment must be used, such as protective clothing, insulating shoes, goggles, safety helmets, Insulating gloves, etc.

1.1.1.General Requirements

• Do not disable equipment protection devices.
• Do not ignore the warnings, cautions, and precautions in the manual and on the equipment.
• During equipment operation, if any fault is found that may cause personal injury or equipment damage, the operation should be stopped immediately, reported to the person in charge, and effective protective measures should be taken.
• Do not power on the device before it is installed or checked and confirmed by professionals.
• It is prohibited to directly contact, use other conductors to contact, or indirectly contact the power supply equipment through wet objects. Before touching any conductor surface or terminal, measure the voltage at the contact point to confirm that there is no risk of electric shock.
• It is strictly forbidden to touch the running fan with fingers, parts, screws, tools or boards to avoid injury to hands or damage to the equipment.
• If a fire occurs, personnel should evacuate the building or equipment area and call the fire alarm. Under no circumstances is it strictly forbidden to re-enter the burning building or equipment area.

1.1.2.Personnel Requirements

Personnel operating the equipment should be professionals and trained personnel.

Professionals: People who are familiar with the principles and structure of the equipment, have experience in operating the equipment, and are aware of the various potential sources of danger and the magnitude of danger during the installation, operation, and maintenance of the equipment.

Trained personnel: Personnel who have received appropriate technical and safety training and have the necessary experience, are aware of the dangers that may arise to them when performing a certain operation, and are able to take measures to minimize the dangers to themselves or other persons.

• Personnel responsible for installing and maintaining the equipment must first undergo rigorous training, master the correct operating methods, and understand various safety precautions and relevant standards of the country/region where they are located.
• Only qualified professionals or trained personnel are allowed to install, operate and maintain the equipment.
• Only qualified professionals are allowed to remove safety facilities, debug and repair equipment.
• Personnel involved in special scenarios such as electrical operations, height operations, and special equipment operations must have special operation qualifications required by the local country/region.
• Replacement of equipment or parts (including software) must be performed by authorized professionals.
• Except for the personnel who operate the equipment, no other personnel are allowed to approach the equipment.

1.2.Electrical Safety

———————————————————————————————————————

Danger :

Before making electrical connections, make sure the device is intact and undamaged, otherwise it may cause electric shock or fire.

———————————————————————————————————————

 Danger :

Irregular or incorrect operation may cause accidents such as fire or electric shock.

———————————————————————————————————————

 Warning:

During operation, foreign objects must be prevented from entering the equipment, otherwise it may cause equipment short circuit failure or damage, load power supply reduction or power failure, and personal injury.

———————————————————————————————————————

Warning:

When installing equipment that needs to be grounded, the protective ground wire must be installed first; when dismantling the equipment, the protective ground wire must be removed last.                   ———————————————————————————————————————

Notice:

Considering the impact of corrosion between copper and aluminum, it is strictly forbidden to use aluminum wire for direct access.

———————————————————————————————————————

1.2.1.General Requirements

• Installation, operation and maintenance must be carried out in the order of steps in the manual. Do not modify, add or change equipment without authorization, and do not change the installation sequence without authorization.
• Install temporary fences or warning ropes in the work area and hang a "No Entry" sign. Non-staff members are strictly prohibited from entering.
• Before installing or removing the power cables, the device itself and its upstream and downstream switches must be disconnected.
• Charging stations should reserve power access load capacity to meet the needs of the equipment; the equipment's AC input voltage and current should meet the technical parameter index requirements.
• In case of emergency, immediately press the emergency stop switch and disconnect the upper switch. Do not perform other operations and contact professionals for handling.
• If you find liquid entering the device, please turn off the power immediately and do not continue to use it.
• Before operating the equipment, carefully check that the tools used meet the requirements and register them in the book; after the operation, collect them according to the number to prevent them from being left inside the equipment.
• Before installing power cables, make sure that the cable labels are correctly marked and the cable terminals are well insulated.

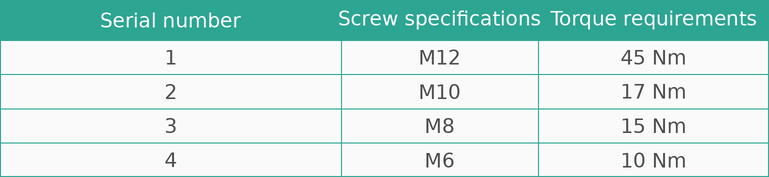

• When installing the equipment, you need to use a torque tool with a suitable range to tighten the screws. When tightening with a wrench, make sure the wrench is not skewed and the torque value error does not exceed 10% of the specified value.
• Use torque tools to fix the screws and use red markings for inspection. After the installer confirms that the screws are tightened, the inspector confirms that they are tightened and then applies a red marking (the marking line needs to cross the edge of the screw).
• Ensure that all air ducts are functioning properly, control electromagnetic interference, and prevent dust or other foreign matter from falling on internal components and boards.
• After installation, ensure that all electrical component protective covers, insulating sleeves and other devices are in place to avoid the risk of electric shock.
• After installation is completed, please promptly clean up the installation tools, metal parts and debris in and around the device.
• If the device has multiple inputs, all inputs of the device should be disconnected and the device can be operated only after it is completely powered off.
• When maintaining the power consumption or distribution equipment behind the power supply equipment, you need to turn off the corresponding output switch of the power supply equipment.
• When maintaining the equipment, disconnect the upper switch or circuit breaker, hang a "Do Not Close" sign on the corresponding switch or circuit breaker, and post a warning sign to prevent accidental connection. The power can be turned on again only after the fault is resolved.
• When diagnosing and troubleshooting a fault, if a power outage is required, the following safety measures must be completed: power outage > electrical test > installation of grounding wire > hanging signs and installing barriers.
• Please check the terminal screws of the equipment regularly to make sure they are tightened and not loose.
• If the cable is damaged, it must be replaced by a professional to avoid risks.
• It is strictly forbidden to artificially alter, damage or cover the logos and nameplates on the equipment. Logos that become unclear due to long-term use must be replaced in a timely manner.
• Do not use water, alcohol, oil or other solvents to clean the electrical components inside and outside the equipment.

1.2.2.Grounding Requirements

• The grounding impedance of the equipment should meet the requirements of local electrical standards.
• The equipment should be permanently connected to the protective ground. Before operating the equipment, check the electrical connection of the equipment to ensure that the equipment is reliably grounded (the grounding resistance is not greater than 4 ohms).
• Do not operate the equipment without a grounding conductor installed.
• It is prohibited to damage the grounding conductor and the continuity of the grounding must be confirmed before grounding.
• For devices using three-pin sockets, ensure that the grounding terminal in the three-pin socket is connected to the protective ground.
• This device is a large contact current device. Before connecting the input power, the protective grounding terminal of the device housing must be grounded to prevent the leakage current of the device from causing electric shock to the human body.

1.2.3.Wiring Requirements

• The selection, installation, and routing of cables must comply with local laws, regulations, and specifications.
• When laying the power cord, it is strictly forbidden to make loops or twists. If the power cord is found to be insufficient, it must be replaced. It is strictly forbidden to make joints or welding points in the power cord.
• After the cables are divided, the cable terminals need to be protected at the cable division points.
• All cables must be securely connected, well insulated, and of appropriate specifications.
• Cable troughs and wire holes should have no sharp edges, and the cable conduits or wire holes must be protected to prevent the cables from being scratched or damaged by sharp edges, burrs, etc.
• Cables of the same type should be bundled together, with a straight and neat appearance and no outer sheath damage; cables of different types should be laid separately and must not be entangled or crossed with each other.
• After debugging is completed, use fireproof mud to seal the cable opening immediately to prevent moisture and small animals from entering.
• Buried cables need to be securely fixed using cable brackets and cable clamps. Cables in the back-fill area must be in close contact with the ground to prevent deformation or damage caused by stress during back-filling.
• When external conditions (such as laying method or ambient temperature) change, it is necessary to refer to local regulations and specifications to verify cable selection and determine whether the current carrying capacity meets the requirements.
• It is prohibited to perform irregular operations such as pushing the cables directly off the vehicle to avoid cable damage that may lead to degradation of cable performance, affecting current carrying capacity and temperature rise, etc.

1.2.4.Anti-static Requirements

• The static electricity generated by the human body can damage static-sensitive components on the board, such as large-scale integrated circuits (LSI).
• Before touching a circuit board or chip, please observe the electrostatic protection regulations. You should wear anti-static work clothes, anti-static gloves or a wrist strap, and the other end of the anti-static wrist strap should be well grounded.
• When holding a board or a module with an exposed circuit board, you must hold the board or module edge without components. Do not touch the components with your hands.
• The disassembled boards or modules must be packed with anti-static packaging materials before they can be stored or transported.

1.3.Environmental Requirements

———————————————————————————————————————

Danger :

It is strictly forbidden to place the device in an environment with flammable or explosive gas or smoke, and it is forbidden to perform any operation in such an environment.

———————————————————————————————————————

Danger :

It is strictly forbidden to store flammable and explosive items in the equipment area.               ———————————————————————————————————————

Danger :

It is strictly forbidden to place the device near heat or fire sources, such as fireworks, candles,

heaters or other heating devices. Heat to the device may cause damage to the device or cause a fire.

———————————————————————————————————————

Warning:

When the device is running, do not block the ventilation openings, cooling system or cover the with other objects to prevent high temperature from damaging the device or causing a fire.

———————————————————————————————————————

1.3.1.General Requirements

• The temperature and humidity environment for storing the equipment should be appropriate. It should be stored in a clean, dry, well-ventilated area and protected from dust and condensation.
• It is strictly forbidden to install and operate the equipment beyond the scope specified by the technical indicators, otherwise it will affect the performance and safety of the equipment.
• It is strictly prohibited to install, use and operate outdoor equipment and cables (including but not limited to moving equipment, operating equipment and cables, plugging and unplugging signal interfaces connected to the outdoors, high-altitude operations, outdoor installation, opening doors, etc.) in severe weather conditions such as lightning, rain, snow, and gale force 6 or above.
• It is strictly forbidden to install the equipment in an environment with dust, smoke, volatile gas, corrosive gas, infrared and other radiation, organic solvents or excessive salt.
• It is strictly forbidden to install the device in an environment with metallic conductive dust or magnetic dust.
• It is strictly forbidden to install the equipment in areas where fungi, moulds and other microorganisms are likely to grow.
• It is strictly forbidden to install the equipment in areas with strong vibration, strong noise sources and strong electromagnetic field interference.
• The site selection should comply with local laws, regulations and relevant standards.
• The installation environment should have a solid ground surface without rubber soil, soft soil or soil prone to sinking. It is strictly forbidden to choose low-lying areas or areas prone to water accumulation. The site level should be higher than the historically highest water level in the area.
• During installation, operation and maintenance, you must first clean up the accumulated water, ice, snow or other debris on the top before opening the door to prevent debris from falling into the equipment.
• When installing the equipment, please ensure that the installation base is sturdy and meets the equipment's load-bearing requirements.
• All wiring holes need to be sealed. Use sealing mud to seal the wiring holes where wiring has been routed, and use the covers that come with the equipment to seal the wiring holes where no wiring is routed.
• After installing the equipment, clear away empty packaging materials such as cartons, foam, plastic, cable ties, etc. from the equipment area.

1.4.Machinery Safety

———————————————————————————————————————

Danger :

When working at heights, you must wear a safety helmet, safety belt or waist rope and tie it to a firm and sturdy structure. It is strictly forbidden to hang on moving unstable objects or metal with sharp edges to prevent the hook from slipping and causing a fall accident.

———————————————————————————————————————

 Warning:

Tools must be fully prepared and inspected by professional organizations. It is prohibited to use tools that have scars, fail inspections, or have exceeded the inspection validity period. Ensure that the tools are firm and not overloaded.

———————————————————————————————————————

 Warning:

The cabinet must be firmly fixed to prevent it from tilting and collapsing due to an unstable center of gravity, which could cause problems such as injuries to installers and damage to equipment.

———————————————————————————————————————

 Warning:

It is strictly forbidden to drill holes on the equipment. Drilling will damage the sealing, electromagnetic shielding performance, internal components and cables of the equipment. The metal chips generated by drilling will enter the equipment and cause short circuits of components and circuit boards.

———————————————————————————————————————

1.4.1.General Requirements

• Paint scratches that occur during equipment transportation and installation must be repaired in a timely manner, and it is strictly forbidden to expose the scratched parts for a long time.
• Without our company's evaluation, it is prohibited to perform arc welding, cutting and other operations on the equipment.
• It is prohibited to install other equipment on the top of the equipment without evaluation by our company.
• When working in the space above the top of the equipment, you should add protection on the top of the equipment to avoid damage to the equipment.
• Please use the correct tools and master the correct way to use the tools.

1.4.2.Lifting Heavy Objects Safely

• When carrying heavy objects, be prepared to bear the weight to avoid being crushed or sprained by the heavy objects.
• When multiple people are carrying heavy objects at the same time, height and other factors must be taken into consideration to ensure that the load is carried properly. Balanced quantity distribution.
• When two or more people are carrying heavy objects together, one person should be in charge and lift or lower the equipment at the same time.The pace of verification is unified.
• When moving equipment by hand, you should wear protective gloves, work shoes and other safety protection equipment to avoid injury.
• When carrying equipment by hand, first get close to the object, squat down, and use the strength of your legs. Do not use the strength of your back.
• Use your strength to lift the object slowly and steadily. Do not lift it suddenly or twist your torso.
• When moving or lifting the device, hold the handle or support the bottom edge of the device instead of the installed parts. The handle of the module.
• Do not quickly lift heavy objects above waist height. Place the heavy objects on a workbench or appropriate floor at half waist height. Then adjust the position of your palm and then lift it up.
• When moving heavy objects, you must use balanced and steady force; the moving speed must be uniform and slow; positioning requires steady and slow movement.
• Avoid any impact or drop that may scratch the device surface or damage the device's components and cables.
• When carrying heavy objects, be especially careful around workbenches, slopes, stairs, and places where it is easy to slip.
• When passing through the threshold, make sure the door is wide enough to allow the equipment to pass through to prevent your fingers from being hit or scratched.
• When transferring heavy objects, move your feet instead of twisting your waist. When you need to lift and transfer heavy objects at the same time,
• First point your feet in the direction you want to move the item, then move it.
• When using a forklift to transport, the forklift must be in the middle position to prevent tipping over. Before moving, tighten the equipment with ropes.
• Fixed on the forklift; when moving, it needs special care.
• When transporting, choose sea transportation or roads with good road conditions. Do not support rail and air transportation. Reduces pitch and tilt.

1.4.3.Lifting Safety Precautions

• Personnel performing lifting operations must undergo relevant training and be qualified before they can take up their posts.
• Temporary warning signs or fences must be erected in the lifting area to isolate it.
• The foundation for lifting operations must meet the load-bearing requirements of the crane.
• Before lifting, ensure that the lifting tools are firmly fixed to a fixed object or wall that meets the load-bearing standards.

• During hoisting, it is strictly forbidden to enter under the boom or the hoisted object.
• During lifting, it is prohibited to drag the wire rope or lifting equipment, and it is prohibited to use hard objects to hit.
• During the lifting process, ensure that the angle between the two cables is no greater than 60°, as shown in the figure below.

1.5.Charging Equipment Safety

1.5.1.General Notes

• When the charging device is transported alone, appropriate protection should be added to avoid damage to the device due to vibration, impact or falling.
• Do not allow children to approach, touch or use the charging station.
• Do not place dangerous items such as flammable, explosive or combustible materials, chemicals, flammable vapours, etc. near the charger.
• Do not use the device when it is in abnormal condition such as water ingress, leakage, etc.
• Please do not use the charger if the equipment is faulty. Do not operate it without authorization when charging is abnormal. If you find any abnormality, please contact the staff in time.
• Do not attempt to disassemble, repair or modify the charger. If you need repair or modification, please contact the staff. Improper operation may cause equipment damage, water leakage, electric leakage, etc.
• Please strictly follow the charging instructions and prompts on the device, otherwise there is a risk of electric shock and fire.
• Operation and maintenance personnel should regularly inspect and maintain the emergency stop switch to ensure that it is effective.
• In case of power failure, repairs must be performed by professionals or authorized maintenance personnel.
• In case of fire, flooding of charging equipment or other accidents, it is strictly forbidden to approach the charging equipment. Please promptly notify professionals who are familiar with the equipment and emergency response methods to handle the emergency.

1.5.2.Notes On Using Charger

• This device is only used for charging electric vehicles.
• When not using the charger, please place the charging connector in the connector holder to avoid unnecessary contamination and damage.
• Before charging, you need to check the charging device to ensure that it is not scratched, rusted, cracked, or that the charging port, cable, or plug surface is damaged. Do not use the device if it is damaged.
• Before charging, you need to check the charging connector, connector holder insulator, pins and sockets. They should be clean and free of foreign objects. If foreign objects are found in the connector holder insulator, pins and sockets of the charging connector, you should immediately report it to the staff for processing and charging is prohibited.
• Before charging, make sure the charging connector is fully plugged in and the hook is fully engaged
• It is strictly forbidden to modify or disassemble the charging connector without permission, and it is strictly forbidden to use external cables or adapters; otherwise, charging failure may occur, and in serious cases, fire may occur.
• It is strictly forbidden to use sharp objects such as screwdrivers and tweezers to touch the charging connector pins and connector holder sockets to avoid damaging the pins and sockets.
• Do not put your fingers into the charging plug.
• It is strictly forbidden to immerse the charging connector in water.
• It is strictly forbidden to step on or run over the charging connector head or connector wire.
• It is strictly forbidden to touch the charging port when the vehicle is charging.
• It is strictly forbidden to remove the connector head during charging to ensure personal and vehicle safety during charging.
• During thunderstorms, it is recommended to stop charging the vehicle as lightning may damage the charging equipment.
• In case of emergency, please press the emergency stop switch immediately, do not perform other operations, and contact professionals for handling.
• During the charging process, the vehicle is prohibited from driving. Please charge when the vehicle is stationary. For hybrid electric vehicles, please turn off the engine before charging.
• During the charging process, the charging operator must ensure that the charging process is monitored. In case of extreme weather such as typhoons, heavy rains, hail, etc., the charging process should be terminated immediately.After charging is completed, it is strictly forbidden to start the vehicle without unplugging the vehicle plug.

2. Introduction

2.1 Product Description

The charger is mainly composed of four parts: AC input and protection, AC/DC conversion module, DC output power distribution, and control system. The DC charger can support a maximum of 12 300A DC outputs and can be configured with a 300A dual-connector terminal and a 500A liquid-cooled terminal. Dual 4G network configuration enables network independence between the operation platform and the equipment management platform, making data more secure.

The system networking diagram is as follows:

2.3 Datasheet

Specifications are listed in a separate article [HERE]

2.4 Appearance

The emergency stop button is only used in emergency situations. Do not use it in non-emergency situations. After using the emergency stop button, if the protective cover of the emergency stop button is damaged, you need to replace the protective cover.

It is recommended to reserve a grounding plate near the terminal grounding position during site planning and construction. When pre-burying the ground grid, the grounding plate must be long enough ( more than 100 mm beyond the base ) to ensure connection with the cabinet grounding point.

2.5 Internal Device Introduction

2.5.1 Front Door Internal Components

 2.5.2 Backdoor Internal Components

2.5.3 Switch Introduction

3. Transportation

3.1 Label On The Product Packaging

3.2 Transportation

 ——————————————————————————————————————

Notice :

During the cabinet transportation and delivery process, please be sure to understand the cabinet's dimensions, weight, and transportation packaging requirements to ensure safe delivery to the site. Refer to the cabinet parameters, arrange transportation tools appropriately, and check whether the installation site passages meet the space and equipment requirements for transportation.

———————————————————————————————————————

4. Installation

4.1 Installation Area Selection

———————————————————————————————————————

Notice :

Please check each item according to the requirements and install it after the requirements are met. The company will not be responsible for the losses caused by forced installation without meeting the site requirements.

———————————————————————————————————————

4.1.1 General Site Selection Requirements

• There should be good 4G communication conditions, or a wired network interface that can connect to the Internet.
• There should be convenient transportation conditions and reliable fire-fighting measures.
• The site area required in the near term should be sufficient, and room for expansion should be left according to the needs of the entire life cycle.
• Choose a well-ventilated area.
• Keep away from strong vibration, strong noise sources and areas with strong electromagnetic field interference.
• Keep away from areas that generate dust, fumes, harmful gases, and areas where corrosive, flammable, or explosive items are produced or stored Place.
• The power supply at the installation site meets the technical specification requirements of the product.
• The installation site is spacious, convenient for parking electric vehicles and charging operations, and local laws and regulations must also be considered Require.
• It is recommended to install the charging terminal close to the charging host; the maximum wiring distance between the host and the terminal is 80m.
• When planning and constructing a site, it is recommended to reserve a grounding plate near the terminal grounding location. Sufficient length must be reserved to ensure connection with the cabinet grounding point.

4.2 Installation Requirements

4.2.1 Installation Environment Requirements

• Avoid installing below a location where there is a risk of falling objects.
• The installation location cannot be in a low-lying area, and the installation level should be higher than the historical highest water level in the area.
• The soil is in good condition and the ground is solid. There should be no bad geological conditions such as rubber soil and soft soil. Do not choose ground prone to water accumulation and subsidence.

4.2.2 Distance Requirements from Obstacles:

● Reserve at least 500mm of vertical space above the whole machine

● When the front and rear doors of the machine are fully opened, the distance from obstacles in front and behind should be at least 1500mm, and the distance from obstacles in left and right should be at least 500mm.

● When the cabinets are placed side by side, the distance between them should not be less than 3000mm

● When the cabinets are placed side by side, the left and right spacing shall not be less than 500mm

4.2.3 Ground Requirements

Before installing the equipment, build a base on the selected ground. Please refer to the installation space requirements and base dimensions for planning and design to meet the cabinet fixing and wiring requirements.

The requirements for foundation construction are as follows:

• The recommended height is 200 mm to meet the cabinet installation and load-bearing requirements.
• The horizontal error between the base and the cabinet contact surface is less than 3 mm.
• There must be drainage measures in the base wiring area to avoid water accumulation.

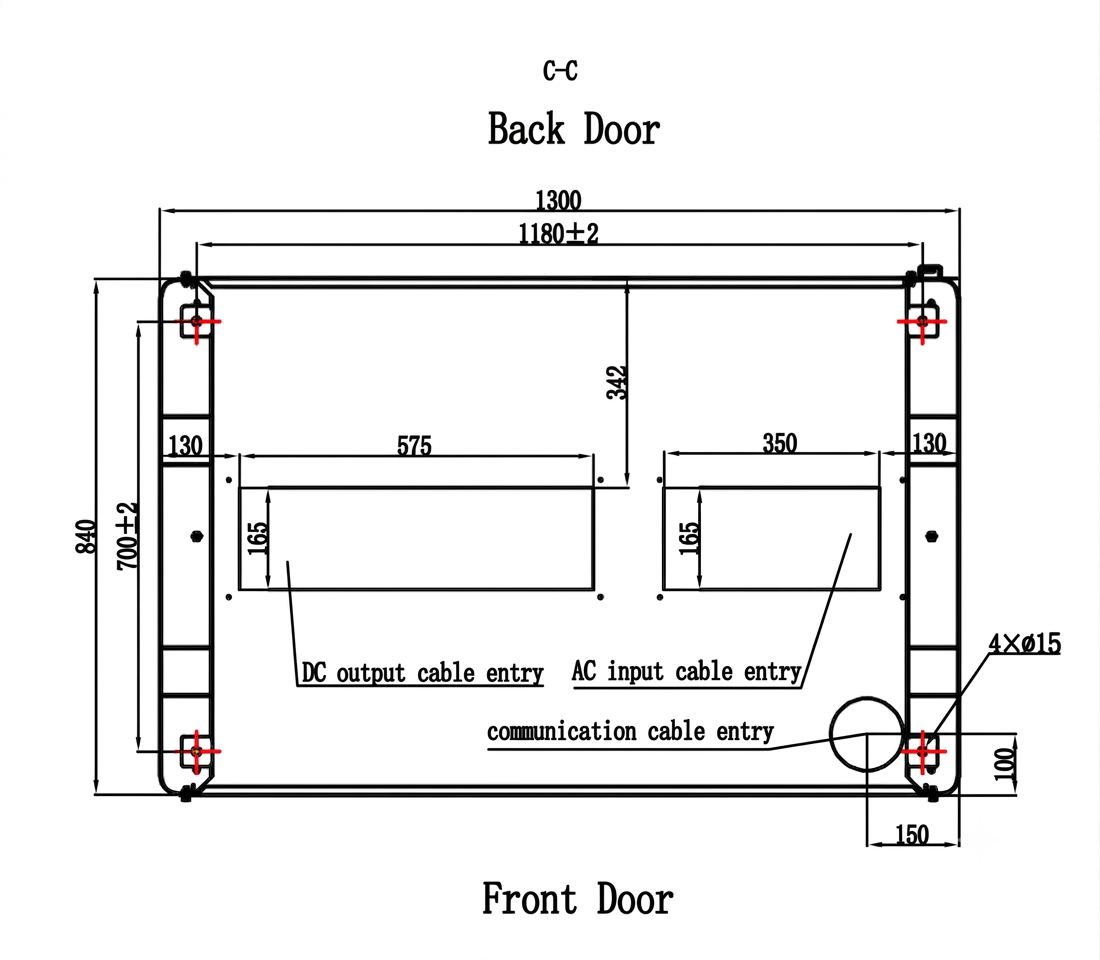

4.2.4 Requirements For Foundation Making

Prepare the foundations according to the diagram below:

• The installation location of this charger is determined according to the site. After the foundation is excavated, the foundation pit should be compacted with a compaction coefficient of 0.95.
• After the foundation is excavated, the power line conduit should be pre-buried. The cable conduit should be made of carbon corrugated pipe, steel pipe or PVC pipe. The pipe diameter must be 1.5 times larger than the outer diameter of the cable. The position of the incoming conduit in the figure takes the direct buried trench under the foundation as an example. The position of the incoming conduit can be determined according to the position of the cable trench/brick cable trench.
• Ordinary concrete: foundation Fc≥14.3N/mm² , cushion Fc≥9.6N/mm² , the concrete strength can be increased on site according to actual conditions.
• M12*100 bolts use embedded bolts, which are required to be perpendicular to the foundation surface, with an exposed length of 30mm to ensure that 3~4 threads are exposed after the nut is tightened.
• The repeated grounding flat iron of the charger is laid along the cable trench in accordance with local laws and regulations.
• The threading sleeve is 100mm higher than the cushion layer.
• All dimensions in the figures are in mm.
• All matters not covered in the figure shall be implemented in accordance with current national standards.

4.3 Installation Preparation

4.3.1 Protection Preparation

4.3.2 Handling Equipment

4.3.3 Installation Tools

4.3.4 Cable Preparation

4.3.4.1 Cable Recommendations

4.3.4.2 Cable Binding Requirements

• Cables of the same type should be bundled together, and cables of different types (such as AC cables, DC cables, signal cables, etc.) should be laid separately. They must not be entangled or crossed.
• AC lines, DC lines, and signal lines must be bundled separately and cannot be bundled together.
• After bundling, the cables should be close together, straight and neat in appearance, and without any damage to the outer skin.
• When tying cable ties, the cable tie heads should face the same direction and the cable ties in the same position should be on the same horizontal line.
• After the cables are installed, labels or tags must be attached to both ends of the cables, at the connecting points in the middle, or at the turning points.
• When trimming the excess part of the cable strip head, leave about 3 mm and trim it evenly.

4.3.4.3 Safety Requirements

• Try to avoid sharp objects or wall burrs when laying cables. If this is unavoidable, use a bushing to protect the cables.
• The cables should be kept as far away from heat sources as possible or heat insulation materials should be added between them to prevent direct damage (melting) or functional degradation (aging or cracking) of the insulation layer due to heat.
• Leave an appropriate margin (about 0.1m is recommended) at turns or near equipment to facilitate maintenance of cables and equipment.

4.3.4.4 Cable Routing Requirements

• When outdoor cables may be accidentally damaged, they need to be protected, such as by placing them in conduits.
• The inner diameter of the protective tube should not be less than 1.5 times the outer diameter of the cable (including the protective layer).
• After the cables are divided, cable terminals need to be installed at the cable division points for protection.
• Lay the cables in the correct direction and then install the cable clamps.
• The power cable routing must comply with local regulations and construction requirements.
• The power line layout should comply with the requirements of the engineering design drawings.
• During the routing process, if it is found that the power cord is not long enough, the power cord
• should be replaced and no joints or welding points should be made in the power cord.
• The deployment must be strictly organized and have dedicated personnel to direct and coordinate. It is prohibited for untrained personnel to take up the post and for operations to be carried out without communication facilities.
• Circles and twists are strictly prohibited during the deployment process.

 4.3.4.5 Requirements for Laying Out Protective Ground Cables

• The protective ground wire of the equipment should be connected to the ground bar, and the overlapping resistance of the equipment grounding should not be greater than 4Ω.
• It is strictly forbidden to introduce the protective ground wire from the outdoor overhead, and it must be buried underground or routed indoors throughout the entire process.
• Be careful not to bundle the protective ground wire and signal wire together or entangle them with each other. Keep a distance between them to reduce mutual interference.
• It is strictly prohibited to install switches or fuses on the protective ground wire.
• It is strictly prohibited to use other equipment as a component of the protective ground wire electrical connection.
• All accessible conductive metal parts inside the equipment casing must be reliably connected to the protective grounding terminal .

4.3.5 Protection switch confirmation

———————————————————————————————————————

Danger :

Before wiring, please make sure that the upper switch is in the off state, and connect the cabinet input and output cables first, and then connect the cables at the upper power switch of the cabinet.

———————————————————————————————————————

Pre-stage switch recommendation:

The front-stage AC switch of the 480kW host can use one 1250A frame circuit breaker for power distribution, or two 630A molded case circuit breakers for power distribution.

4.4 Install

4.4.1 Cabinet Unpacking

4.4.1.1 Remove the Cabinet's Wooden Packaging.

Unpacking tools: pry bar, needle-nosed pliers

Step 1: Remove the top cover

            Step 2: Remove the front and back panels

            Step 3: Remove the left and right panels

            Step 4: Remove the wrapping film

            Step 5: Remove the PE bag

            Step 6: Remove the PEV

4.4.1.2 Removing the Cabinet Base Baffle

Use a Phillips screwdriver to remove the four screws that secure the base baffles on the front and back of the cabinet , and put the screws and baffles aside for temporary storage

4.4.1.3 Removing the Cabinet Pallet

Use a Phillips screwdriver to remove the four screws that secure the base baffles on the front and back of the cabinet , and put the screws and baffles aside for temporary storage

4.4.1.4 Remove the Protective Plate

Please open all cabinet doors first, use an M4 cross screwdriver, remove the screws, hold the protection plate handle to remove all cable protection plates, and then put the screws and protection plates aside for temporary storage .

4.4.1.5 Remove the Cabinet Base Cable Guard

Loosen the eight hand screws at the bottom of the cabinet but do not remove them. Push the cable guard to the outside of the cabinet until it is blocked by the screws and cannot be pushed forward.

4.4.1.6 Cutting Grommet

Use a utility knife, needle-nosed pliers or other tools to cut the wire guard ring at the bottom of the cabinet along the wire guard ring pattern.

4.4.2 Cabinet Installation

4.4.2.1 Use a Forklift Or Crane To Place The Cabinet On The Cement Platform.

Forklift installation requirements:

• Choose a forklift that can meet the cabinet installation requirements based on the cabinet's basic parameters;
• Before installation, choose the appropriate installation position according to the pallet prompts to avoid the cabinet tipping over during installation;
• Before installation, the forklift route should be cleared and the forklift should be stable when moving to avoid excessive shaking that may cause the cabinet to topple over;
• Align the mounting holes at the bottom of the cabinet with the reserved mounting bolts on the base and lower it smoothly.

Crane installation requirements:

• Select a crane that can meet the cabinet hoisting requirements based on the cabinet's basic parameters and the actual space on site;
• Before lifting, check whether the lifting ring on the top of the cabinet is installed tightly;
• The crane sling or bandage should be tied firmly and not fall off, and the lifting angle of the sling or bandage should be ≤60°;
• When tying the slings or bandages, the center of gravity of the cabinet should be considered to ensure that the cabinet is stable after being lifted;
• Before hoisting, the path of the lifting arm should be cleared, and the hoisting should be stable to avoid excessive shaking that may cause the cabinet to topple over;
• Align the mounting holes at the bottom of the cabinet with the reserved mounting bolts on the base and lower it smoothly. Requirements for vertically installing the cabinet on a cement base:
• Push the cable guard plate close to the outside of the cabinet until it is blocked by the screws and cannot be moved;
• After the cables are stripped, the positive and negative cables are inserted vertically into the cabinet from the opening at the bottom of the cabinet in the front-to-back direction;
• After connecting the cables, push the cover plate from the front and back sides of the cabinet close to the cables, and then tighten the thumb screws .
• Cables need to be divided before entering the cabinet, and the length needs to be reserved according to the base size and the wiring position in the cabinet. When hoisting or plugging in, try to keep the cables vertical to ensure that the cables can enter the cabinet smoothly when the cabinet is slowly lowered.

4.4.2.2 Cabinet Fixing

Use a forklift to lift the cabinet 100mm above the base and slowly lower it. After at least two people in front and behind the cabinet confirm that the cabinet base fixing holes are aligned with the base-embedded bolts, the forklift completely lowers the cabinet. At the same time, check the placement of the cabinet around it. If there is no abnormality, place the four M12 nuts and washers of the fixing bolts in sequence, use a socket wrench to fix the nuts, and then reset the base baffle.

                                    1 Cabinet | 2 Embedded bolts | 3 Base

4.4.3 Cabinet Grounding

After the cabinet is fixed, use M8 screws to fix the grounding flat steel to the grounding base at the right rear of the cabinet.

4.4.4 Cabinet Wiring Diagram

Wiring location diagram. For detailed wiring information, please refer to the wiring construction manual.

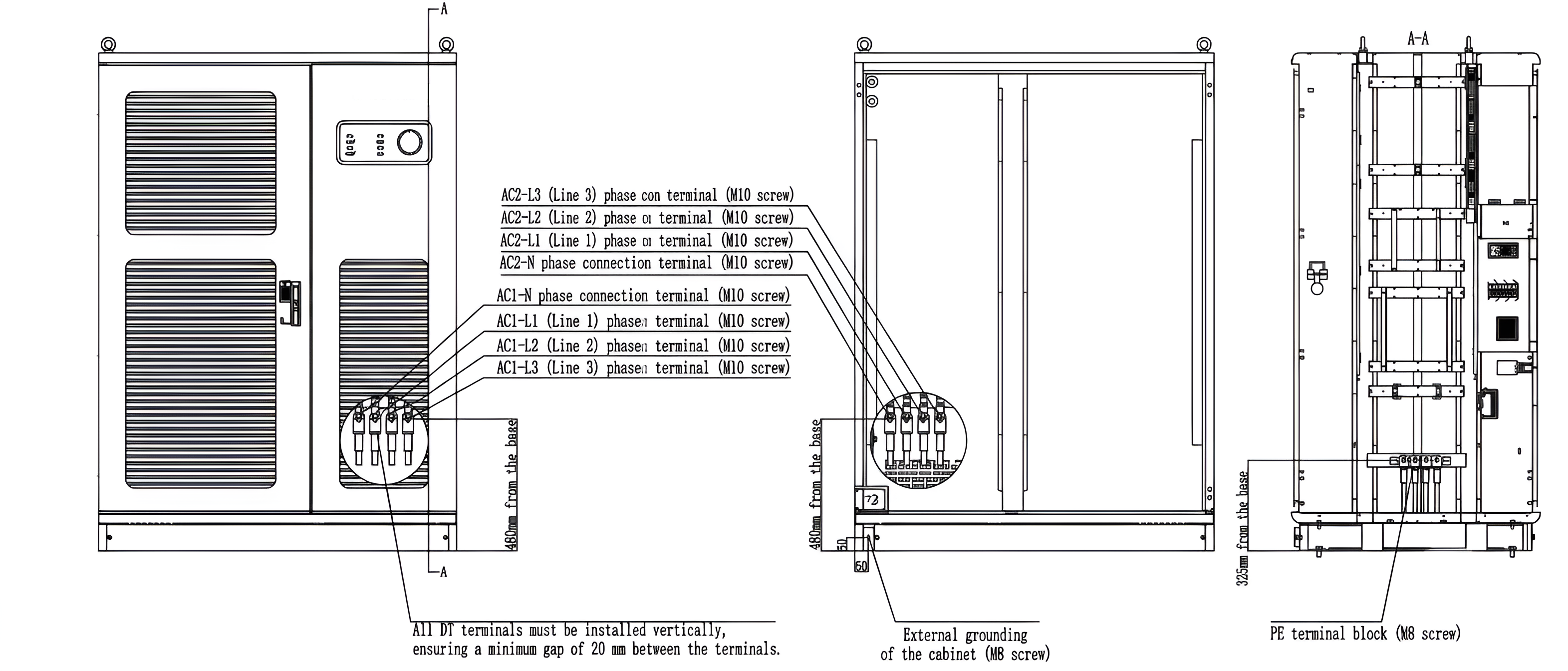

4.4.4.1 Power Line Wiring Diagram

Front

Back

Installation torque comparison table:

4.4.4.1 Terminal Power Supply And Communication Wiring

The host provides system AC power (AC230V), CAN communication, and Ethernet for the terminal. The wiring locations are shown in the figure below:

4.5 Power up

———————————————————————————————————————

Danger :

Please use special protective equipment and special insulating tools to avoid electric shock or short-circuit.

———————————————————————————————————————

Notice :

• The equipment commissioning process involves a lot of technical content, and the commissioning personnel must receive corresponding technical training. Follow the commissioning instructions.
• The commissioning process involves live work. When operating, please stand on dry insulating materials and do not wear metal objects such as watches and necklaces. Use insulated tools during commissioning.
• During operation, avoid human body contact with two charged objects with different electrical potentials.
• During the commissioning process, before any “closing operation”, be sure to check whether the status of the relevant units or components meets the requirements. The voltage at the front end of the circuit breaker needs to be measured to ensure that the input voltage is within the rated range.
• During the operation, if other people are not allowed to operate, a prohibition sign should be hung on the power distribution equipment: "Do not close the switch, someone is operating."
• During the commissioning process, you should observe while commissioning. If you find any abnormal phenomenon, shut down the machine immediately and continue after finding the cause.

4.5.1 Power-on

 ———————————————————————————————————————

 Notice :

This part can be carried out only after all the check results in the pre-power-on checklist are "satisfied", and the power-on operation is carried out according to the following steps.

———————————————————————————————————————

Step 1 After confirming that all system cables ( including terminals ) are correctly connected, reinstall the DC side baffle.

Step 2 Ensure that the AC input circuit breaker and the circuit breaker in the AC distribution cabinet are both turned OFF.

Step 3: Close the front circuit breaker and remove the baffle under the AC compartment; measure the line voltage between the AC input copper bars U, V, and W, which should be between 360 VAC and 440 VAC; reinstall the baffle.

Step 4: Ensure that the upper baffle is in place and turn on the two AC input circuit breakers Q1 and Q2.

Step 5: Remove the upper baffle and measure the line voltage between U, V, and W at the rear end of the AC input circuit breaker. It should be between 360 VAC and 440 VAC. Reinstall the baffle.

Step 6: Measure the input voltage on the upper side of the AC distribution circuit breaker. It should be between 207 VAC and 253 VAC.

Step 7 : Turn on all the circuit breakers Q5, Q6, Q7, Q8, and Q9 of the AC power distribution in sequence, and measure the output voltage at the bottom of the circuit breaker, which should be between 207 VAC and 253 VAC.

-------------------------------------------------

If you encounter any issues or have questions, please Submit a ticket.
