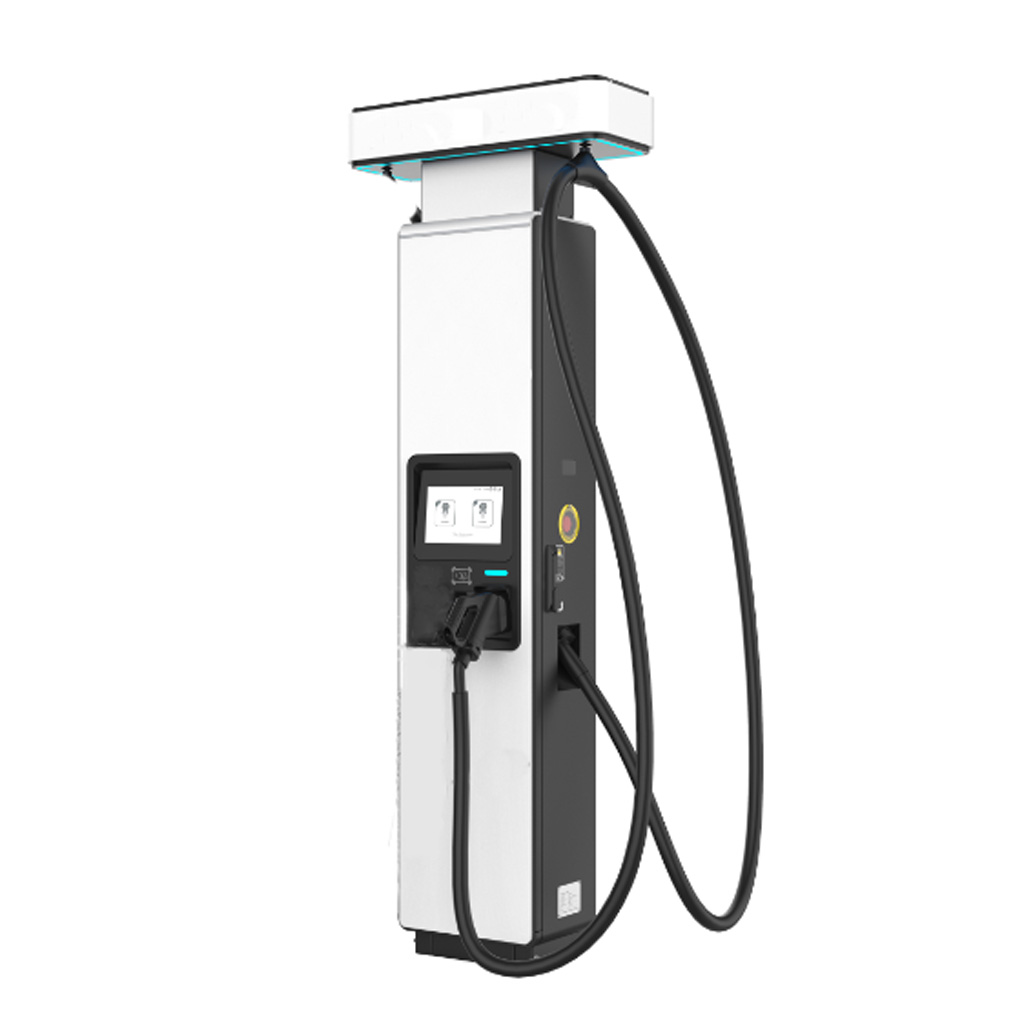

Product ID: MEV500DRENN6CCSX
AC Input:
| Rated Power | 230 VAC ±10% |
| Input Current | 5 A |
| Frequency | 50/60Hz |
| DC Output: | |
| Input/Output Voltage Range | 150 ~ 1000 VDC |
| Constant Power Range | 300 ~ 1000 VDC |
| Output Type | 1*CCS2 |
| Output Current | 300 A |
| Additional: | |
| Charging Type | Mode 4; Case C |
| Standby Power Consumption | ≤ 30 W |
| Communication Interface | Ethernet |
| Communication Protocol | OCPP 1.6J |
| Startup Method | Local start, RFID, Button; Platform start; POS machine (optional) |
| Gun Head Current Limit | Supported (Web-based implementation available) |
| IP Rating | IP54 |
| IK Rating | IK10 (screen supports IK08) |
| Operating Temperature | -25°C to +55°C |
| Relative Humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | ≤2000m |
| Noise Level | ≤ 55dB |
| Installation Method | Floor-mounted |
| Cooling Method | Air-Cooling |
| Cabinet Dimensions (W x D x H), mm | 750 x 300 x 2100 |
| Cabinet Weight | 150 kg |
| Protection | Current- leakage protection, Output over-voltage protection, Short circuit protection, Over-current protection |
| Regulation&Standard | EN IEC 61851-1 / EN IEC 61851-23 / EN IEC 61851-24 / EN IEC 61851-21-2 / DIN 70121 / ISO 15118 |
