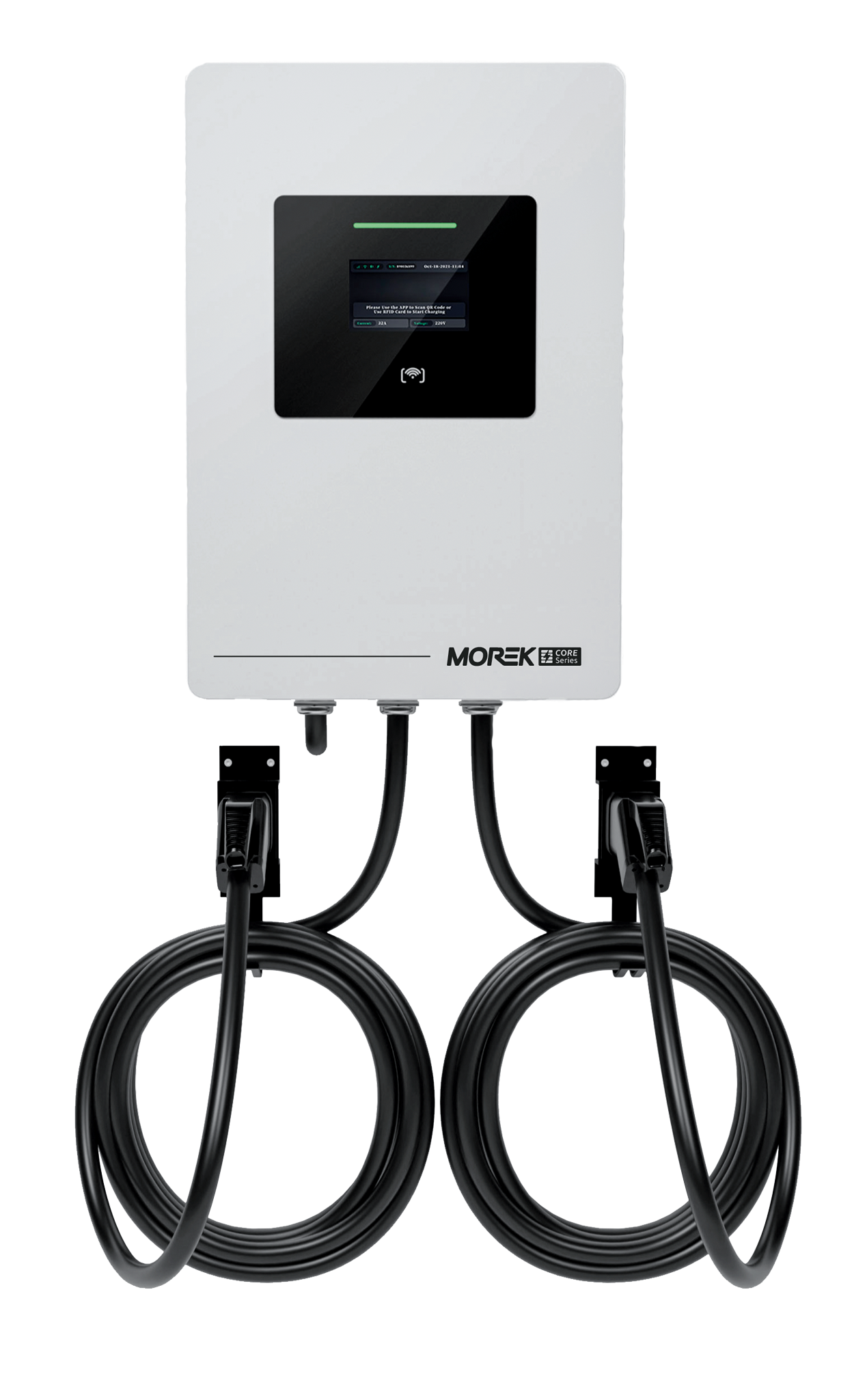

CORE-series DC40 fast charger

Modified on Tue, 28 Oct at 10:53 AM

This article is not available in Hungarian, view it in English

Product ID: MEV40DRENG5CCSP

Safe, reliable and efficient charging service while monitoring real-time charging status and progress.

HMI: 7 in touch screen
LAN, 4G, RFID
5 m Phoenix Contact charging cables
- optional to change
CCS2 connectors
RFID Card, Web app, User APP,
QR code, manual start

Charging mode	Level 3, Mode 4
Connector type	CCS2 connectors with 5m cable
Number of connectors	2
Charging control	RFID Card, Web app, User APP, QR code, manual
Contactless interoperability	ISO/IEC 14443 A/B (13.56 MHz), incl. MIFARE
Internet connection	LAN, 4G
External communication	RS485
IP protection	IP54
Impact strength	IK10
Display	HMI: 7 in touch screen
LED indicator	Yes
Communication protocol	OCPP1.6 J
Standard	IEC62196, IEC61851, EU:EN55011, EN55022 and IEC61000-4
Certificate	CE, CB, UKCA
Power Distribution	Yes
Casing material	Galvanized and painted steel
Cooling method	Smart air cooling
Power network configuration	TN / TT
Peak efficiency	Up to 97%
Noise level	< 55dB
Power meter	Yes
Mounting	Wall- or stand mounted
Standby Power	<5W
Input voltage (AC)	3-phase 400V±20%
Input current (AC)	68 A
Output power	40 kW (max)
DLM function	Available
DLM max count	11
DC output voltage range	150 - 1000 VDC (constant power range 300 - 1000 VDC)
DC output current	125 A / connector
Power Limiting	Available
Storage temperature	-40 to 70°C ambient
Operating temperature	-30 to 50°C ambient
Operating humidity	5%~95% RH, Non-condensing
Grid frequency	50/60 Hz
Altitude	≤ 2000m, No Derating
Electrical protection	OVP(Over Voltage Protection), OCP(Over Current Protection), OTP(Over Temperature Protection), UVP(Under Voltage Protection), SPD(Surge Protection Detection), Grounding Protection, SCP(Short Circuit Protection), Control Pilot Fault, Relay Welding Detection, RCD(DC 6mA)
Cable management system	Yes
Gromet type	Brass gromets
Dimensions mm	770(h) x 580(w) x 250(d)
Weight kg	60
Warranty	24 months
