The DC PRO series concrete foundation is a purpose-engineered concrete base designed for the secure installation of Morek DC PRO charging stations. It provides a stable and durable foundation that ensures correct positioning, structural integrity, and long-term reliability for high-power DC charging installations.
The concrete foundations come in following variations:
- MEVA60DCNFUND for Morek DC60 PRO charger.
- MEVA1218NFUND for Morek DC120 and DC 180 PRO chargers.
- MEVA2432NFUND for Morek DC240 and DC320 PRO chargers.
Technical drawings can be downloaded in pdf format at the bottom of this article.

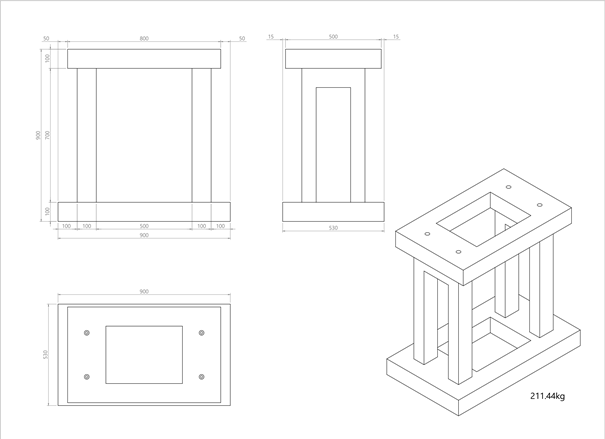

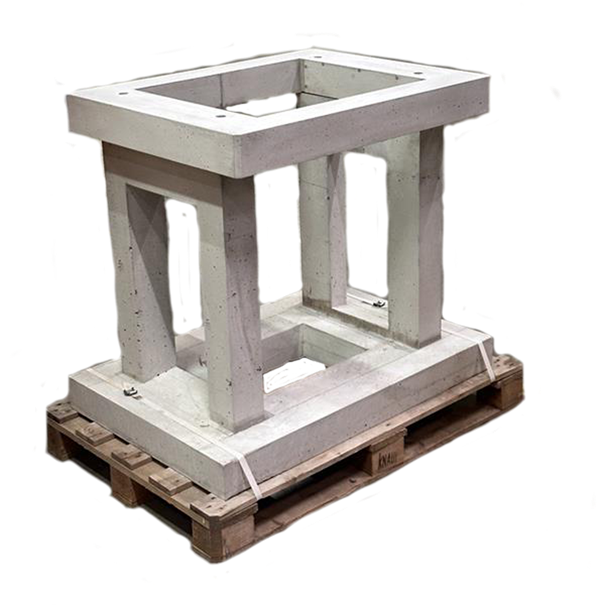

MEVA60DCNFUND DC 60 concrete foundation base and top plate

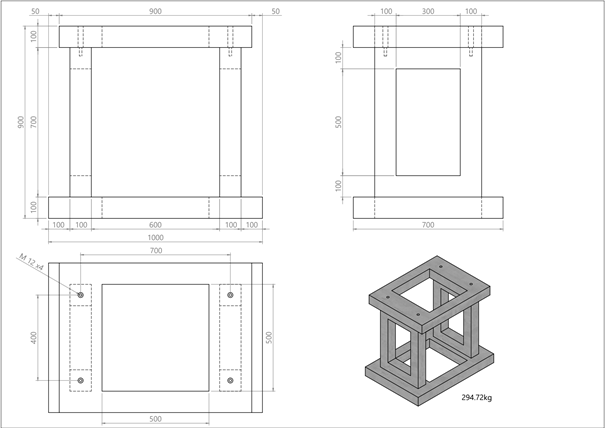

MEVA1218NFUND DC 120/180 concrete foundation base and top plate

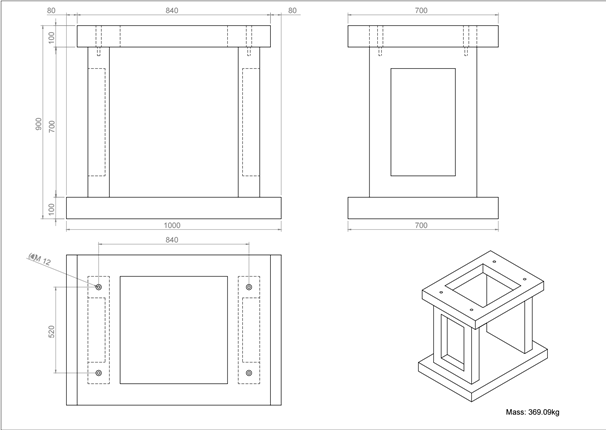

MEVA2432NFUND DC 240/320 concrete foundation base and top plate
